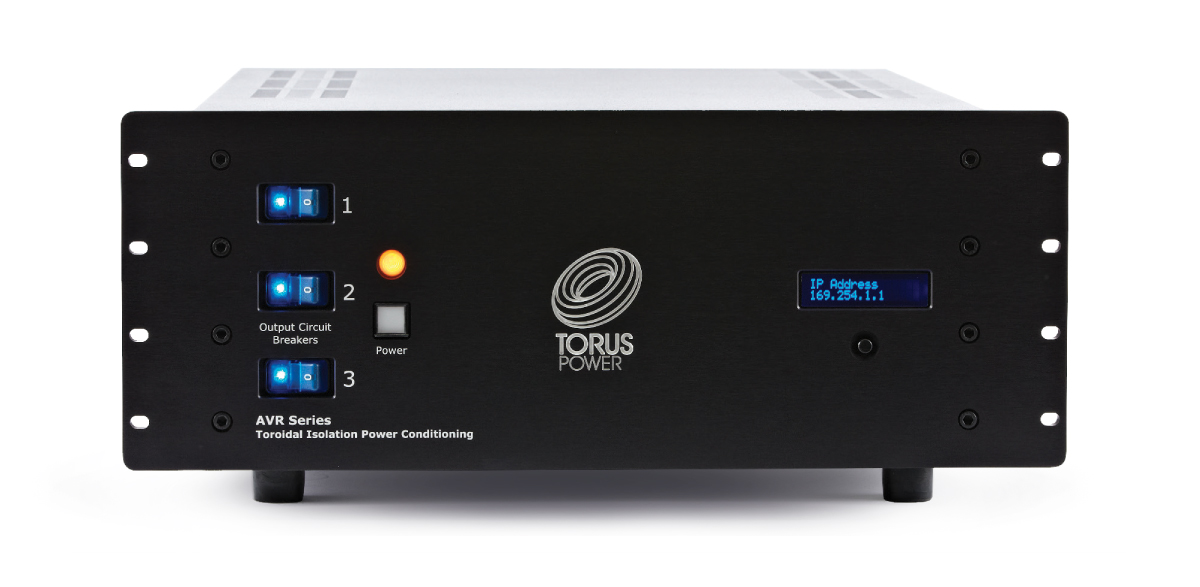

AVR2 SERIES

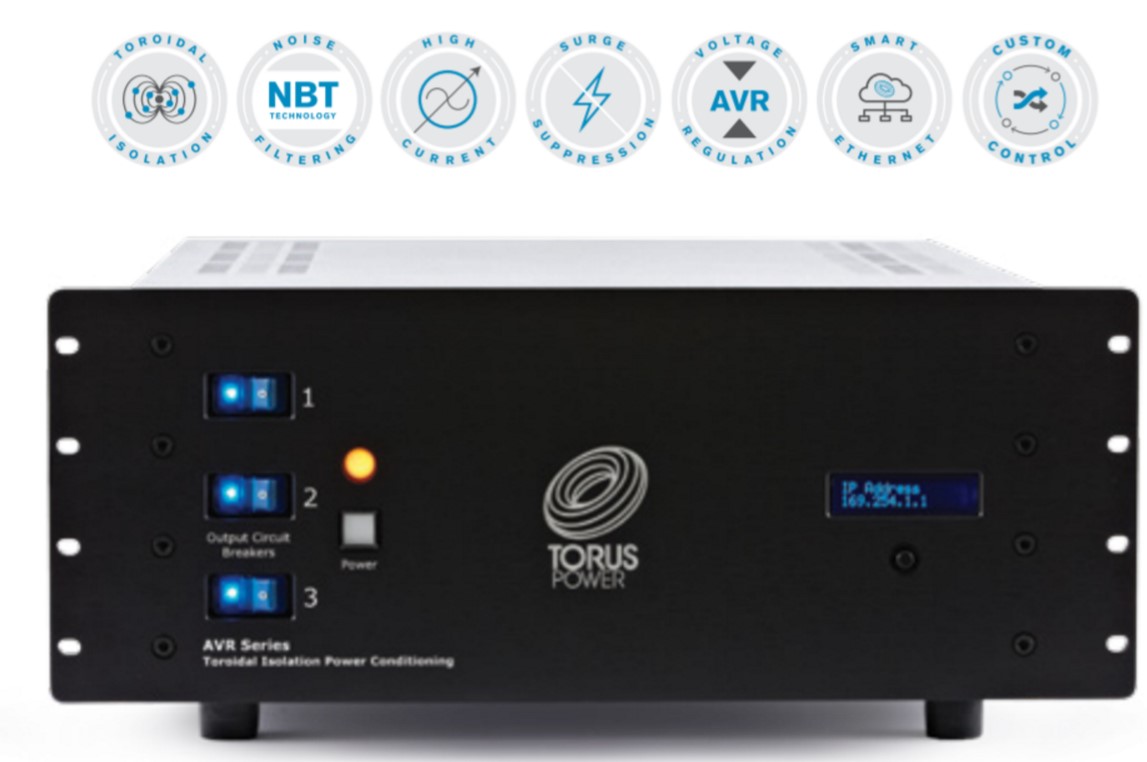

Technology
- Toroidal Isolation
- Noise Filtering
- High Instantaneous Current Capability
- Series Mode Surge Suppression
- Automatic Voltage Regulation
- Smart Ethernet
- Custom Control
Description
The AVR2 series includes the most feature-rich models in the Torus Power line-up, with enhanced Ethernet control and monitoring features. Performance and protection remains consistent with other models in the Torus line.
The AVR2 Has All of the Features of The AVR
AVR SERIES FEATURES
- IP addressable with built-in web browser interface – allows remote monitoring and control
- Password protection control
- Automatic email notification on fault condition
- RS-232 control — compatible with Crestron and other control systems
- Switch-On Safety Delay (5 seconds) when power turned on / restored
- Cloud based monitoring and control through ihiji, and other systems
- Front panel display shows voltage conditions (input / output voltage), current draw, and IP address
Custom Control (AVR2 Models)
- All features of the AVR Series
- Individually addressable outlet zones
- Power-up sequencing with selectable delay time between zones
- Scheduling features allows automatic control (on/off) of any outlet zone
- Schedule up to 6 events per day per zone
- Automatic reboot feature allows remote restart of routers and modems if internet connection lost
- Schedule remains active when internet connection is lost, if system power maintained

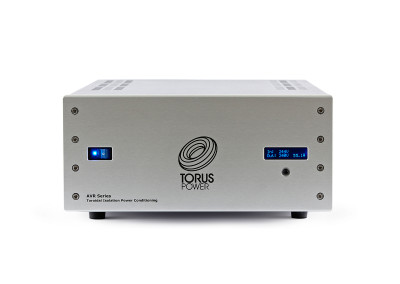

AVR2 16

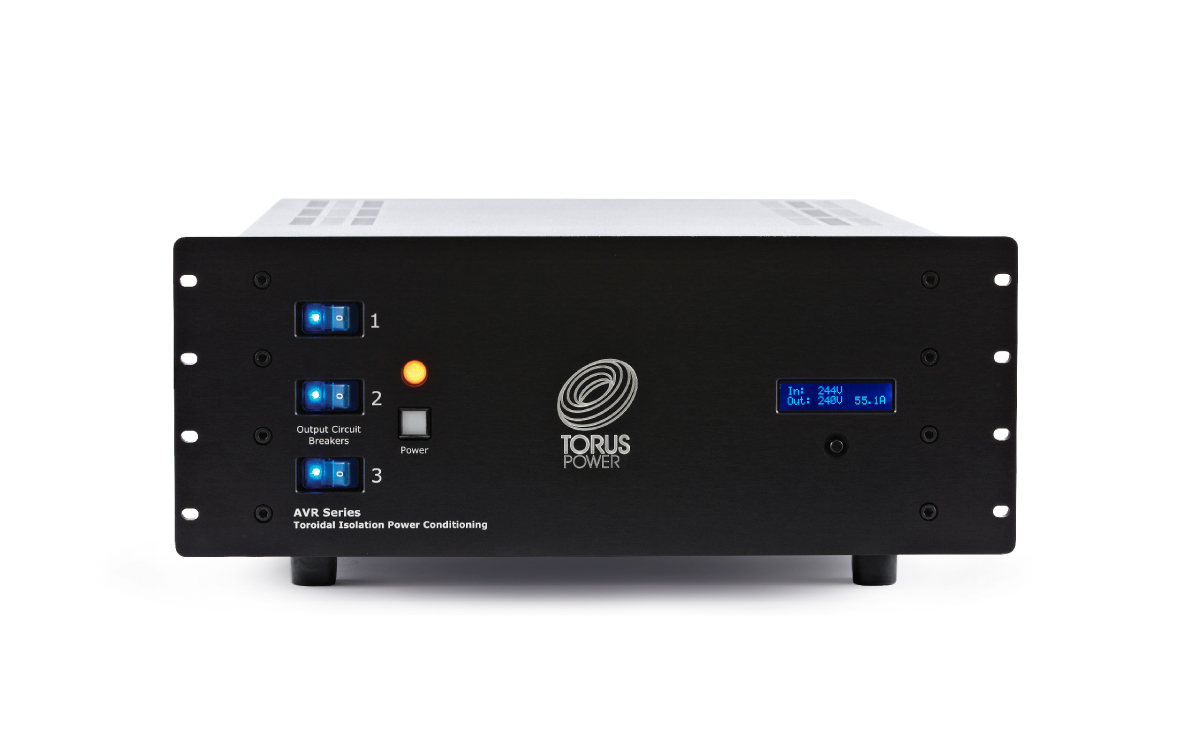

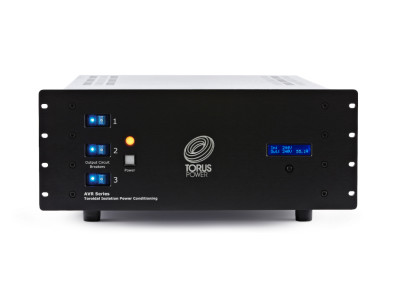

AVR2 30
SPECIFICATIONS
| MODEL | AVR2 8 AUS | AVR2 16 AUS | AVR2 30 AUS | AVR2 45 AUS |
| FACEPLATE | 19″ RACK MOUNT (RK), 17″ SILVER (CS), 17″ BLACK (CB) | |||
| CHASSIS | 4U | 5U | ||
| INPUT | 240 VAC (Operating Range 170 – 270V) | |||
| OUTPUT VOLTAGE | 220 – 240 VAC ± 10 V | |||
| INPUT CURRENT LIMITING* | 8A (C) | 16A (C) | 2 X 30A (F) | 2 X 45A (F) |
| OUTPUT CURRENT | 8A | 16A | 30A | 45A |
| POWER VA | 1,920 | 3,840 | 7,200 | 10,800 |
| FREQUENCY | 50 / 60 Hz | |||
| NO. OUTLETS | 5 | 7 | 8 | |
| INLET 250V | IEC 15A NEMA C14 | IEC 20A NEMA C20 | Hubbell Twist-lock | |
| 30A NEMA L6-30P | 50A 2PW | |||
| OUTLET 250V AUS SOCKET | 10 A | 20A | ||
| WEIGHT LB | 77 | 123 | 188.5 | 220 |
| WEIGHT KG | 35.0 | 56.0 | 85.5 | 100 |
| SIZE MM | ||||
| W ** | 483 | 483 | 483 | 483 |
| D | 483 | 559 | 559 | 660 |
| H | 203 | 249 | 249 | 249 |
| SIZE IN | ||||
| W ** | 19 | 19 | 19 | 19 |
| D | 19 | 22 | 22 | 26 |
| H | 8 | 9.8 | 9.8 | 9.8 |
* (F) – Fuse(s) (C) – Circuit Breaker
** Width is based on RACK MOUNT (RK) Faceplate
